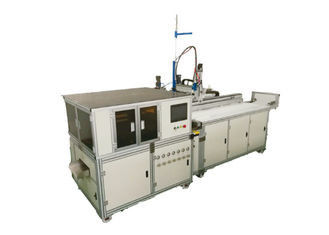

Fully Automatic Reverse Osmosis Filter Membrane Rolling Machine High Speed
Product characteristics:
1. High production efficiency: By optimizing software and structure, pasting tape, cutting material and upper central pipe can be synchronized with gluing and film releasing, so that the efficiency can be increased from 40-45 seconds per branch to 28-30 seconds per branch, which is about 20% higher than that of the same industry (calculated with 250 or 75G film on 2 pages).
2. Reliable performance: Sports components adopt Taiwan Shangyin complete sets of modules. Electrical and pneumatic components adopt SMC, Mitsubishi, Omron, Schneider and other well-known brands in Europe, America and Japan.
3. Non-cleaning of dispensing system: AB mixing valves and metering pumps adopt special sealing materials and sealing structure. It only takes 6-8 months to stop using non-cleaning in a short time. (The rubber valves used in the same industry because of sealing reasons, once the machine stops using for more than 3-5 days, there will be varying degrees of curing, the use and maintenance is more cumbersome).
4. High versatility: The machine can meet the production requirements of various types of membrane components (1810-3213) and can be produced, with the maximum outer diameter of film coiling 90 mm.
Main configurations:
Three-Axis Drive Motor Matsushita/Mitsubishi, Japan
Film Driving Motor Matsushita/Mitsubishi, Japan
PLC Mitsubishi, Japan
Motion Control Card
Cylinder SMC
Ultrasound Welding Special Customization
Screw Guideway Taiwan TBI
Display: Taiwanese Vinylon
Vacuum pump 4L
Storage tank 304 stainless steel (40L)
Equipment parameters:
Travel 1200mm (X)*500mm (Y)*150mm (Z) Maximum speed 500mm/s
Mixing mode: static mixing tube, instantaneous mixing, easy cleaning
Resolution 0.01mm
Proportional Control System: Progressive Motor + Gear Pump
Ultrasound welding
Motion Control System PLC + Motion Control Card
Repetition accuracy (+0.25mm)
Mixing ratio 1:1-10:1 (digital supplementary adjustable comparison)
Applicable Products 1810S-3213S
The amount of glue injected per injection is 1-15G/s (the amount of vomiting can be adjusted according to the proportion of glue)
Power 5.5KW 220V
Precision of gel injection (+2%)
Maximum capacity 110-130pc/H
Ratio accuracy (+2%)
Weight 880KG
