Detail Information

Name:	Stainless Steel Filter Housing	Material:	SS304/SS316L/PP
Designed Pressure:	9.6 Bar(136psi) Within 30 Mins	Max. Temperature:	105 ℃ (design 140 ℃)
Length:	5''/10''/20''/30''	Surface Finish:	Electro Polished, Ra≤0.2 Um
Highlight:	industrial water filter housing , security filter housings

Product Description

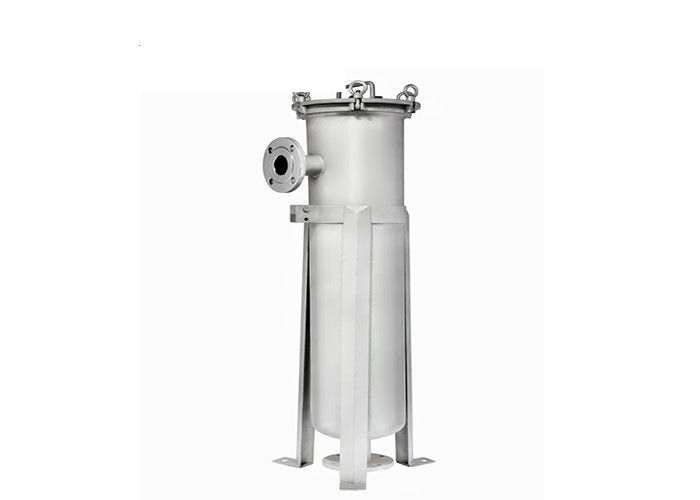

Industrial Bag Filtration Systems with 5 filter bag and filter housing for food and beverage

Features

1. Designed for Bag Filtration System Consists of stainless steel housing, bag holder and filter bags. The wide range of bag sizes for choice.

2. Complete Stainless Steel Structure Quality stainless steel 304 or 316L material High pressure & high-temperature design are available.

3. Meet the GMP Requirements Smooth and round corner design, no dead space Surface is mechanical/electropolished or sandblasting passivation.

4. Clean-in-Place (CIP) /Steam-in-Place (SIP) Design.

Application

1. Liquid pre-filtration, particularly suitable for large volume or high viscosity liquids

Specification

Type	Model	Dimensions		Inlet/Outlet	Bag		Flow Rate(m3/h)
Type	Model	D	H	Inlet/Outlet	Size	Q'ty(pc)	Flow Rate(m3/h)
Single bag filters	BJD1	220	550	2'' Female pipe thread/Tri-clamp/Flange	#1	One	20
	BJD2	220	950		#2		40
	BJD4	130	650		#4		12
Multi-bag filters	BJD2-2	400	1550	3'' Female pipe thread/Tri-clamp/Flange	#2	Two	80
	BJD2-3	500	1550		#2	Three	120
	BJD2-4	550	1550		#2	Four	160
	BJD2-5	600	1550		#2	Five	200
	BJD2-6	650	1620		#2	Six	240

Order information

Product

Bag Size

Bag Q'ty

Inlet/Outlet

Connection

Surface

Material

BJD

1-#1 bag

2-#2 bag

3-#3 bag

4-#4 bag

5-#5 bag

X-#X bag

01-single

02-two

03-three

04-four

05-five

06-six

08-eight

A-side in and side out

B-side in and bottom out

C-bottom in and bottom out

D-top in and bottom out

K-Tri-Clamp

F-Flange

S-Thread

S-Sand blasting

T-Polished

SUS304

SUS316L

Bag size: #1; Bag Q'ty: Single;Inlet/outlet: side in and side out;Connection: Tri-Clamp Surface;Polished Material: SUS304;Selection code is: BJD101AKT304

Tag:

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month
