| Place of Origin: | China |
|---|---|
| Brand Name: | SFFILTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs per month |
| Name: | Stainless Steel Multi Cartridge Filter Housing | Filter Material: | SS304, SS316L |
|---|---|---|---|
| Length: | 10/20/30/40Inch | Operating Pressur: | 6.0-10.0 Bar |
| Cartridge End: | 226, 222, 220, Etc | Application: | Pharmaceuticals; Fine Chemicals, Water Treatment; Food&Beverage,etc |
| High Light: | sanitary filter housing,ss bag filter housing |
||

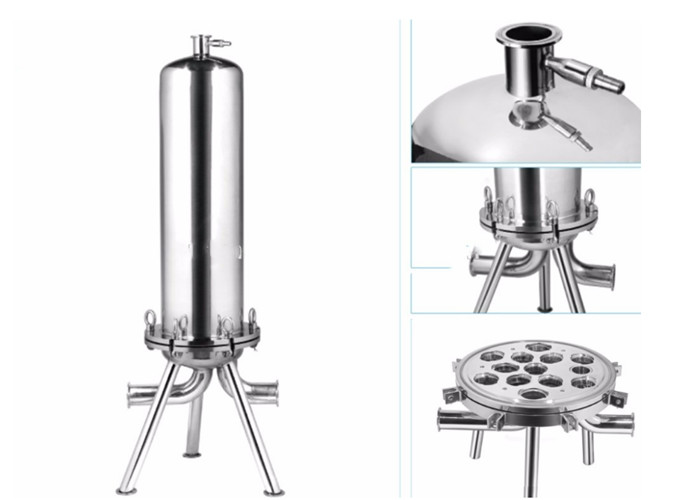

Stainless Steel Multi Cartridge Filter Housing
These filter housings are manufactured from 304 or 316L stainless steel of the highest quality, available in 1,3,5,8.....45 round configurations and in 10 inch, 20 inch, 30 inch and 40 inch length cartridge.
Stainless steel cartridge filter housings are suitable for a variety of liquid filtration applications(high purity beverage, chemicals and pharmaceuticals, water treatment, alcohol beverage industry, etc).
1. Mirror Surface Finish Complete Stainless Steel Construction;
2. Easy To Install Design With Sanitary Connections, Easy to Clean;
3. Housings Accommodate From One (1) to Many 10", 20", 30" or 40" Cartridges;
4. Clean-in-Place (CIP) /Steam-in-Place (SIP) Design;
| Material: | Housing | Stainless Steel 304 and 316L for Choice | |||
| O-Ring | Silicone, Viton, EPDM, etc | ||||
| Surface Finish: | Interior/Exterior | Electro polished, Ra≤0.2um | |||
| Connections: | Inlet/Outlet | Tri Clamp | 1” to 10” Or as your request |
||
| Flange | |||||
| Thread | |||||
| Vent | ¼" female | ||||
| Drain | 1" male or as your request | ||||
| Lid/Cover Type: | Swing Bolts or Tri Clamp(only for single round) | ||||
| Operating Pressure: | Max. 6 bar(87 psi) | ||||
| Temperature: | Max. 95 ℃ (sterilization 150 ℃) | ||||
| Cartridge Adapter: | 220(DOE), 222, 226, etc | ||||
| Cartridge Capacity: | 1, 3, 5, 8..... 30, 36, 45 round | ||||
| ·Water Treatment, RO system; |
| ·Pharmaceuticals, API, Biologics; |
| ·Food and Beverage, Wine, Beer, Mineral Water, Distillation Equipment; |
| ·Paints, Inks Plating Solutions; |
| ·Process Chemicals and Electronics Industry ; |
