| Place of Origin: | China |
|---|---|
| Brand Name: | SFFILTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs per month |
| Name: | Cheap V-Clamp Hinged SS Micron Bag Filter Housing Factory | Grade:: | Top In Bag Filter |
|---|---|---|---|
| Contruction:: | Top Inlet Bag Filter Housing | Flow Rate:: | 20~500 M3/hour |
| Bag Size:: | Customized | Application:: | Stainless Steel Bag Filters For Water Treatment |
| High Light: | ss filter housing manufacturers,water filter housing manufacturers |
||

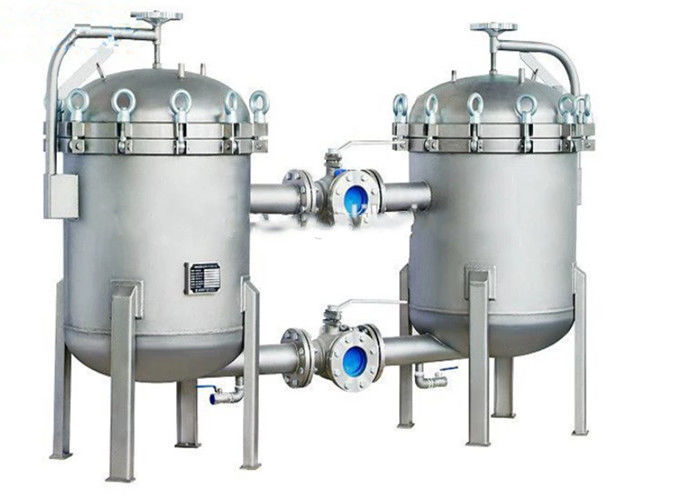

cheap V-Clamp Hinged SS Micron Bag Filter Housing factory
Bag filters are widely used in paint, beer, vegetable oil, pharmaceutical, cosmetics, chemicals, petroleum products, chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, coatings and paints, sugar, molasses, resins, inks, industrial waste water, fruit juice, edible oil, waxes and other industries precision filtration.
Customized product and service can be available .
Main advantages
01. Small probability for side-bag leakage , which effectively guarantee the filtering quality.
02. Bag type filter can bear greater working pressure, it is of small pressure loss,low operation cost and obvious energy saving .
03. Accuracy of filtration bag increased continuously, it could reach 0.5 μm at most.
04. Bag type filter large handling capacity, small volume, containing a large quantity of pollutants.
05. Based on the working principle and structure of Bag type filtering system,which is convenient to replace the filter bag and without cleaning,and time saving and labor saving.
06. Filtration bag could be use repeated after cleaning to save cost.
07. bag filter application scope is broad, with flexible operation and multiple installation .
|
Technical parameters
|
Design pressure: 0.96MPa 30min |
| Maximum working pressure:0.60MPa | |
| Surface smoothness:Ra≤0.2 | |
| Design flow rate:Ra≤0.2 | |
| Inlet&outlet type thread or flange | |
| Type:single bag & multi bag filter housing | |
|
Designed for bag filtration system
|
Different kinds of bag support baskets to fit for |
| wide range of filter bags | |
| Complete stainless steel structure | Made of 100% SUS304, SUS316L, PP |
|
Easy to clean
|
Surface is mechanical polished or sand blasting passivation. |
| dished end to aid clean down |
Specifications for single bag filter housing
| No. | Size | Diameter | Length | inlet&outlet | Filter bag | Flow rate |
| Code | (mm) | (mm) | size | (m/h) | ||
| 1 | BJD1 | 220 | 550 | 2" thread, clamp, flange | 1 | 20 |
| 2 | BJD2 | 220 | 950 | 2" thread, clamp, flange | 2 | 40 |
| 3 | BJD4 | 130 | 650 | 1" thread, clamp, flange | 4 | 10 |
Specifications for multi bag filter housing
| No. | Size | Diameter | Length | inlet&outlet | Filter bag | Flow rate |
| Code | (mm) | (mm) | size | (m/h) | ||
| 1 | BJD2-2 | 400 | 1600 | 3" thread, clamp, flange | 2*2 | 80 |
| 2 | BJD2-3 | 500 | 1600 | 3" thread, clamp, flange | 2*3 | 120 |
| 3 | BJD2-4 | 550 | 1600 | 4" clamp, flange | 2*4 | 160 |
| 4 | BJD2-5 | 600 | 1600 | 4" clamp, flange | 2*% | 200 |
Ordering Guide
| PRODUCT | Bag Size | Bag Q'ty | Inlet/Outlet | Connection | Surface | Materials | |
| BJD | 1 -#1 bag | 01 - Single | A- side in and side out | K-coupling | S- sand blasting | 304 | |
| 2 - #2 bag | 02 - Two | B- side in and bottom out | F-bolt | T- polished | 316L | ||
| 3 - #3 bag | 03 - Three | C- bottom in and bottom out | S- thread | PP | |||
| 4 - #4 bag | 04 - Four | D- top in and bottom out | How to order ?-example | ||||
| 5 - #5 bag | 06 - Six | Bag size: #1; Bag Q'ty: Single | |||||
| 6 - #6 bag | 08 - Eight | Inlet/outlet: side in and side out | |||||
| 7 - #7 bag | 12 - Twelve | Connection: coupling | |||||
| X - other size | Surface: sand blasting | ||||||
| Material: SUS304 | |||||||
