304 316 SS Filter Housing Manufacturers For Water Pretreatment System

Basic Information

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month

Get Best Price Contact Now

Detail Information

Name:	SS Filter 304 316 Housing With PP Filter Cartridge For Water Pretreatment System	Material Of Bag::	Polyester
Bag Number::	1,2, 3, 4, 5, 6, 7, 8, Etc	Inlet, Outlet::	Tri Clamp, Flange, Thread, DIN, Etc
Operating Pressure::	6 Bar	Surface Finish::	Mirror Polish, Sand Blasting
Highlight:	water filter housing manufacturers , 5 micron water filter housing

Product Description

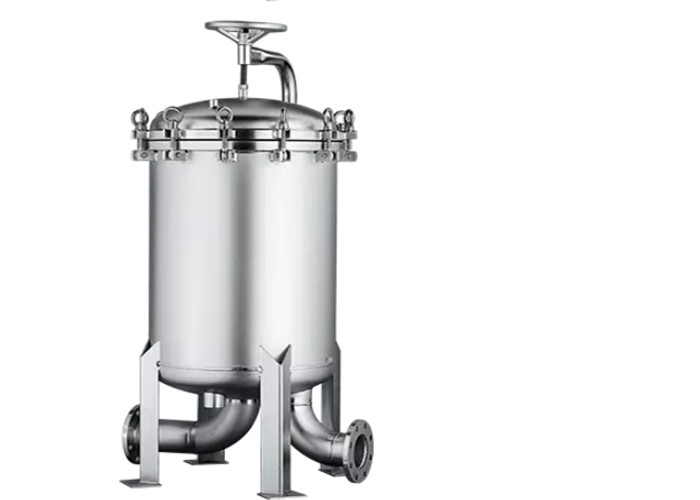

SS filter 304 316 housing with PP filter cartridge for water pretreatment system

Bag filters are particularly useful for filtering large volumes or high viscosity liquids, which are constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement.

Features & Benefits:

High flow rates
Complete stainless steel 304,316L structure
High temperature & High pressure design are available
Wide range of bag size for choice
Easy to clean

Bag Size:

Item	Flow rate(m3/h)	Filtration area(m2)	Diameter(mm) X Length(mm)
#1	20	0.25	180(7") X 410(16")
#2	40	0.50	180(7") X 810(32")
#3	6	0.10	102(4") X 210(8.25")
#4	12	0.15	102(4") X 356(14")
#5	25	0.30	175(6,7/8") X 870(34")
*Size could be on your request

Specifications:

Type	Model	Dimension(mm)		Connection	Bag		Flow rate(m3/h)
Type	Model	Diameter	Height	Connection	Size	Q'ty(pc)	Flow rate(m3/h)
Single Bag Filters	BJD1	220	550	2''Tri-Clamp, Flange, NPT, DIN, etc	#1	One	20
	BJD2	220	950		#2		40
	BJD3	130	650		#3		6
Muti-Bag Filters	BJD2-2	400	1550	3'', 4", 5" Tri-Clamp, Flange, NPT, DIN, etc	#2	Two	80
	BJD2-3	500	1550		#2	Three	120
	BJD2-4	550	1550		#2	Four	160
	BJD2-5	600	1550		#2	Five	200

Operating Conditions(Bag Filter):

Max.Operating Pressure: 6 bar(87psi) , 10.34bar(150psi)

Max.Operating Temperature: 120°C

Applications:

Processing Chemicals	Paints,Inks,Coolants
Oils,Edible Oils, Vegetable Oils	Pharmaceuticals
Sugar Syrup	Cleaning Fluids
