Steel Ring 1 Micron 7 X 32 Polypropylene Felt Filter Bag Five Stitching High Performance

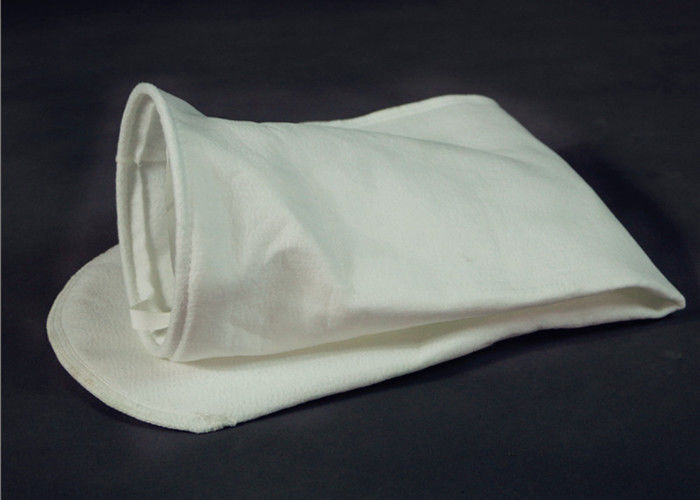

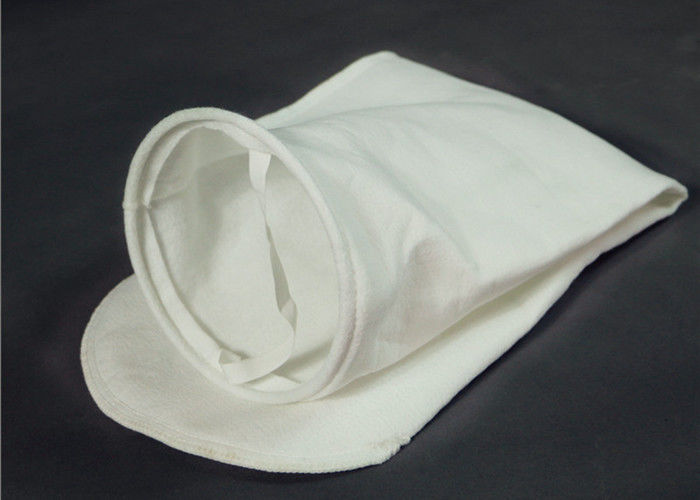

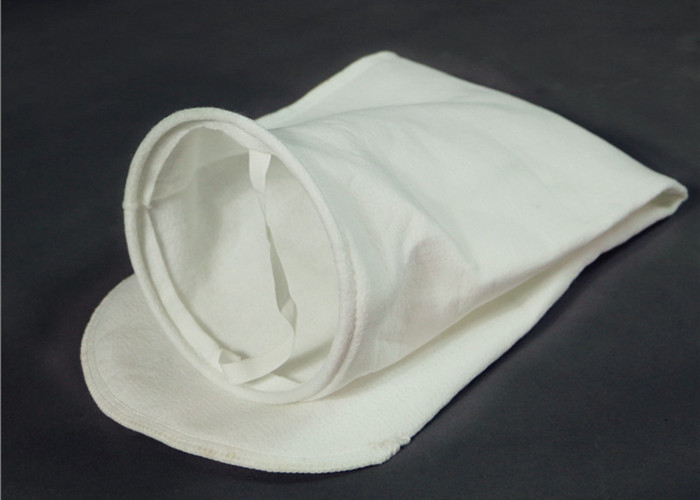

SFFILTECH Steel Ring 1Micron 7x32 Polypropylene Felt Filter Bag

The PP filter bag is made of polypropylene fiber filter cloth.It is of high filtration accuracy and is produced by singe,calendaring or membrane cove collar.

All abutting edges are welded ensuring no side leakage.

It can be equipped with double layer structure or internal folding structure,Which can effectively expand the filtration area and efficiently increase the dirt-retention capacity.

PP filter bag has high performance price ratio and is suitable for medium and low viscosity liquid filtration.

Specification:

Strong acid and alkali resistance and wide chemical compatibility.

A tight structure that produced by singe,calendaring or membrane cove collar.

All abutting edges are welded ensuring no side leakage.

The edges are tightly sewn with five wire ensuring no side leakage.

Depth filtration with good dirt-retention capacity.

Multilayer or folded structures is more efficient than monolayer.

Material and Technology:

Product material: Polypropylene non-wowen fabric(PP)

Ring material: Plastic;Stainless steel;Galvanized steel;Drawstring

Size: See dimension parameter table

Process: Full welded;Edge five stitches+ring sewn;Edge five stitches+ring welded;Edge welded+ring sewn

Bottom Styles: V bottom;U bottom;Cylinder bottom;Flat bottom

Proformance:

PH : 1-13

Filter accuracy: 1micron~200micron

Working Temp: ≤90℃

Pressure: ≤0.5Mpa@20℃,≤0.4Mpa@90℃
