Detail Information

Place Of Origin:	Shanghai	Type:	Micro Filter,water Filter
Material Of Bag:	Polyester, Nylon, Non-woven, PE, PP, PTFE	Thickness:	1.9-2.4 Mm
Acid Resistance:	Excellent	Abrasive Resistance:	Excellent
Size:	5 Kinds Of Size
Highlight:	industrial filter bags , high efficiency filter bags

Product Description

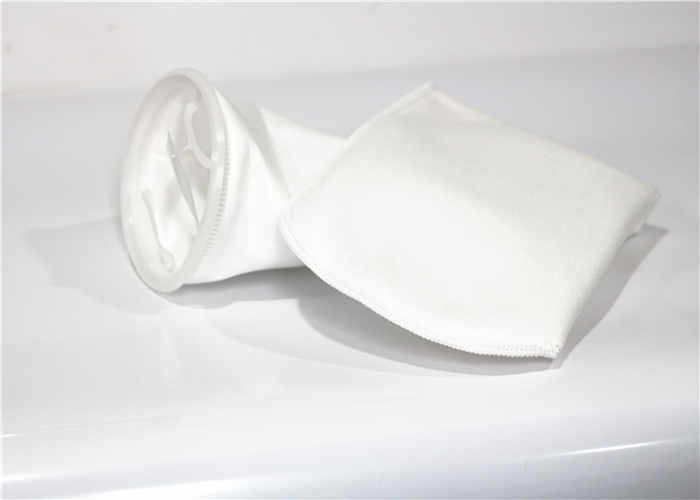

Nylon Liquid Filter Bag Flexible H or F plastic Type Abrasive Resistant

Nylon Liquid Filter Bag Flexible H or F plastic Type Abrasive Resistant

Filter bag is the key element for bag filter system.

Filter Media: PP /PE / NYL : Needle Felt Polypropylene, Needle Felt Polyester, Nylon Monofilament

Accuracy: 0.3um-600um

Size: 1# 2# 3# 4# 5# (international standard)

Specification of all kinds of liquid filter bag:

Size NO.	Max Flow (gpm)	Micron Rating	Bag Top	Bag End	sewn/ welded
7"x17"	1#	100	0.3/0.5/1....-200	PP/steel	sewn/ welded
7"x32"	2#	220	0.3/0.5/1....-200	PP/steel	sewn/ welded
4"x8"	3#	25	0.3/0.5/1....-200	PP/steel	sewn/ welded
4"x14"	4#	50	0.3/0.5/1....-200	PP/steel	sewn/ welded
6"x 23"	5#	120	0.3/0.5/1....-200	PP/steel	sewn/ welded

NYLON MONOFILAMENT MESH
Nylon filter bag also operating on the principle of surface filtration, monofilament mesh filter bags are manufactured from mesh materials in which each strand is a single filament.The non-deformable filaments are woven in a specific, consistent pattern and fusion welded for extra strength. Monofilament meshes are structurally very strong and are available in nylon (STANDARD).

Filter bag ring: There are stainless steel ring, galvanized steel ring, polypropylene, PE plastic ring and polyester rope.
Filter bag making process: using imported equipment hot-melt welding process, all-welding process, such as plastic ring welding process,bottom seam welding and sewing process, such as seam, overlock, reverse seam, etc.

Filter medium:	PE,PP,NMO,PTFE
Collar extension type:	polypropylene, nylon, polyester, stainless steel
Relative filtrationpore size:	0.5/1/3/5/10/25/50/80/100/200 µm
Type:	various specifications
Airtight method:	heat fusion, reverse sewing
Effective filtration area:	various specifications
Others:	special requirement of diameter and collar extension can be customized

Nylon Liquid Filter Bag Flexible H or F plastic Type Abrasive Resistant 0

Application:
the filter bag used in the filter housing as following:

Related filter bag:
micro filter bag, micro filter tube, mesh filter bag, filter tube

Tag:

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	100pcs
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month
