| Place of Origin: | China |
|---|---|
| Brand Name: | SFFILTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs per month |
| Name: | CE Filter Cartridge Machine Weld Inner And Outer Cage Of Filter Cartridge Out Cage Extension | Heating Accuracy: | ± 2 ° C |
|---|---|---|---|
| Temperature Range: | Normal Temperature ~ 400 °C | Welding Speed: | Approx:30S / Pcs |
| Keywords: | Cartridge Machine | ||
| High Light: | pp filter cartridge production machine,cartridge making machine |
||

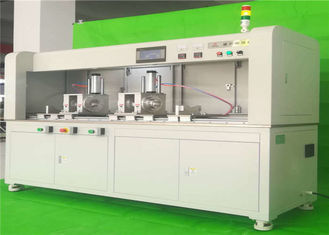

Filter Cartridge Machine Weld Inner And Outer Cage Of Filter Cartridge Out Cage Extension
Machine Feature
High flow filter cartridge outer cage extension machine
which is one of the components of the high flow pleated filter cartridge production line. It is used to weld the inner and outer cage of the filter cartridge,to make the two inner and outer cage together. 40-inch filter cartridge and 20-inch filter cartridge. After welding, it can effectively ensure the sealing and firmness of the outer cage, filter layer and end caps of the filter cartridge.
2. Machine Feature
High flow filter cartridge outer cage extension machine
which is one of the components of the high flow pleated filter cartridge production line. It is used to weld the inner and outer cage of the filter cartridge,to make the two inner and outer cage together. 40-inch filter cartridge and 20-inch filter cartridge. After welding, it can effectively ensure the sealing and firmness of the outer cage, filter layer and end caps of the filter cartridge.
3. Technical parameters:
Equipment Name:High flow filter cartridge outer cage extension machine
Equipment model: RF-C1660
power: 6KW
Power supply: 380V 50HZ
Air pressure: 6Kg/cm2
Heating accuracy: ± 2 ° C
Temperature range: normal temperature ~ 400 °C
Welding speed: Approx:30S / pcs
Dimensions: L2000*W1000*H1800
Equipment weight: about 800Kg
4, configuration details:
Touch screen + PLC: Delta
Circuit breaker: LG
Touch screen + PLC: Delta
Circuit breaker: LG
Thermostat: Winpark
Solid state: Shimadan
Guide rail, slider: HIWIN
Auxiliary appliances: IDEC
Pneumatic components: Airtec
Protective cover: European standard aluminum profile + PMMA
Parts: carton steel C 45(S45C) (Galvanized)
Filter cartridge holder: 6061 aluminum plate (surface anodized)
5, equipment price: yuan
6, manufacturing cycle: 30 working days
