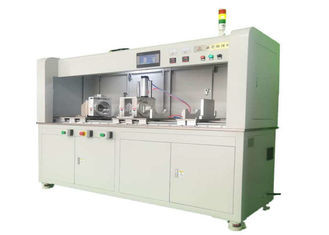

80V 50HZ 6KW filter cartridge end cap welding machine
Equipment Drive: Pneumatic
Equipment parameters: Hot melt temperature, time and depth can be automatically controlled.
Equipment introduction: This equipment is a micro-porous membrane folding filter cap welding machine. It is one of the equipment in our folding filter production line. It is mainly used for hot melt sealing and welding of the plastic end caps at both ends of the filter core. After welding, it can effectively ensure the sealing and firm reliability of the filter core. The equipment is controlled automatically and operated correctly.
Usage: Welding of end cover of folding filter element.
Advantages of the equipment: stable performance, convenient handling, beautiful appearance, good quality and good safety guarantee with the experience of many manufacturers.
Welding example: folding filter element
equipment features:
High flow filter cartridge end cap welding machine can be used for 3M,Pull, and is mainly used for welding the plastic end caps at both ends of the filter cartridge. After welding, it can effectively ensure the sealing and firmness of the outer cage, filter layer and end caps.
3.Technical parameters:
Equipment Name: High flow filter cartridge end caps welder
Equipment model: RF-H1640
Equipment power: 6KW
Power supply: 380V 50HZ
Air pressure: 6Kg/cm2
Heating accuracy: ± 2 ° C
Temperature range: normal temperature ~ 400 °C
Welding speed: about 30S / pcs
Dimensions: L2000*W1000*H1800
Equipment weight: about 800Kg
4, configuration details:
Touch screen + PLC: Delta
Circuit breaker: LG
Thermostat: Winpark
Solid state: Shimadan
Guide rail, slider: HIWIN
Auxiliary appliances: IDEC
Pneumatic components: Airtec
Protective cover: European standard aluminum profile + PMMA
Parts: carton steel C 45(S45C) (Galvanized)
Filter cartridge holder: 6061 aluminum plate (surface anodized)
6, delivery time: 30 working days
