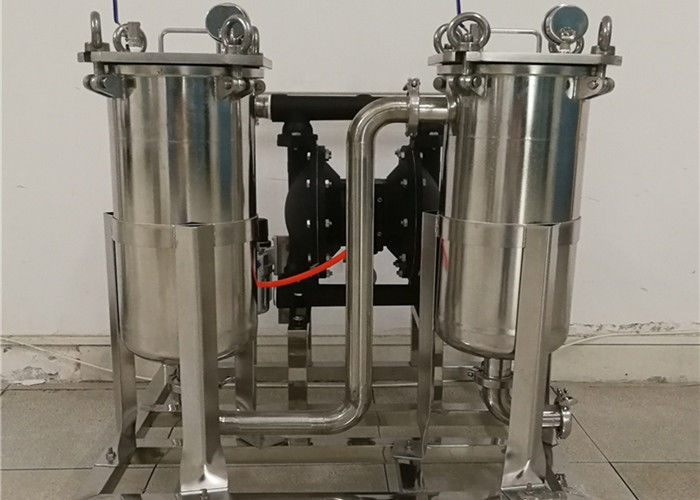

SS 316 304 High Pressure Filter Housing Size Customized For Food / Beverage

High Pressure SS 316 304 Stainless steel Bag Filter Tank housing for food and beverage

Mini Stainless Steel 5" bag filter housing with pneumatic wall mounted or trolley

Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.

Stainless steel bag filter housing Feature:
1. material: SS304, SS316L
2. stainless steel multi bag housing, the bag quantity can be customized from 1 to 18.
3. inlet and outlet port is flange connection.
4. Polished or sandblast external surface.

Stainless steel bag filter housing Application:

It's widely used in painting and dyeing, textile industry, beer, vegetable oil, pharmaceutical, Chinese herbal medicine, cosmetics, chemicals, petroleum products, chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, coatings and paints, sugar, molasses, resins, inks, industrial waste water, fruit juice, edible oil, waxes and other industries precision filtration, and more.
