Detail Information

Name:	High Pressure Filter Housing	Filter Bag Material:	PP, PE, Customized
Usage:	Liquid Filtration	Bag Number:	#1, 2, 3, 4, 5, OEM
Max. Working Pressure:	100/150/300 Psi	Inlet & Outlet Type:	Flange/thread Connection
Highlight:	clear water filter housing , hydraulic oil filter housing

Product Description

High Pressure 150 Psi Stainless Steel 2" NPT Inlet/outlet #2 Bag Filter Housing

Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.

Stainless steel Single bag filter housing and multi-bags filter housing, customized wall mounted or trolley type pneumatic big filter system/equipment/machine are provided.

Specifications

Product name:	Stainless Steel bag filter housing	Material	SUS304, SUS316, SUS316L
Bag quantity	single bag or multi-bag	Bag number	# 1, 2, 3, 4, 5 or OEM
Quantity option	1 to 18 bags	Surface treatment	Polished or sandblast external
Seal O-ring	silicon,NBR, EPDM, Viton, PTFE	In&outlet connection	V-clamp, thread or flange
Bag Filtration rate	0.5, 1 5, 10, 20, 50, 100, 200 to 500 micron	Usage	Liquid filtration
Max working pressure	100, 150, 300Psi, OEM	Wall thickness	1.5~5mm

Filter Bag Material and Specification:

Polyester Needle Felt (PET), Polypropylene Needle Felt (PPF), Polypropylene Plain (PPP), Nylon Monofilament (NMO), and many other materials..

Type	Flow rate (m³/H)	Filtration Area (㎡)	Size (DiameterxLength)
#1	20	0.25	7''x16'' (180mmx410mm)
#2	40	0.50	7''x32'' (180mmx810mm)
#3	6	0.10	4''x8.25'' (102mmx210mm)
#4	12	0.15	4''x14'' (102mmx356mm)
#5	25	0.30	6 7/8''x34'' (175mmx870

Application

1. Automotive
2. Food and Beverage
3. Chemical Processing
4. Paints, Inks, Resins and Coatings
5. Electronics
6. Petrochemicals
7. Municipal Water Treatment
8. Industrial Water Treatment
9. Pulp and Paper
10. Pharmaceutical
11. Lubricants, Metalworking Fluids
12. Solvents

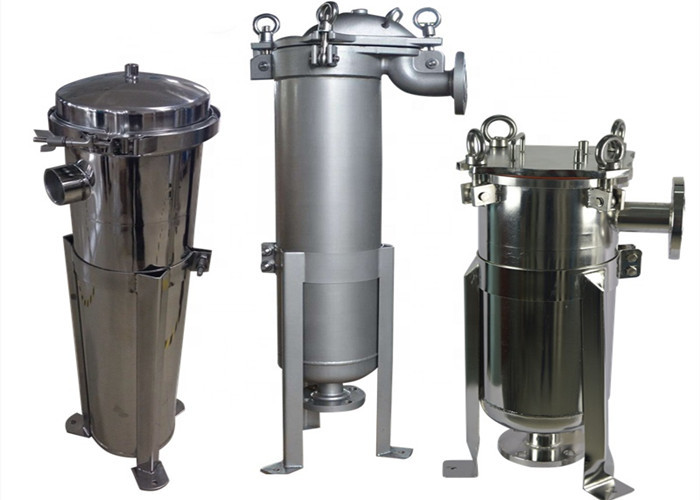

150 Psi Stainless Steel Bag Filter Housing 2" NPT Inlet / Outlet #2 Bag Filter Housing 0

Tag:

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month
