Detail Information

Name:	5 Micron Sediment Filter Cartridge	Media:	Polypropylene
Core/Cage/End Adaptor::	Polypropylene	Micron Rating::	1, 5, 10, 25, 50, 75, 100 μm
Applications::	Plating Solutions, Pre RO/DI, Chemicals, Food & Beverage	Filtration Area::	0.5m2each 10" Length
Highlight:	pp sediment filter cartridge , depth filter cartridges

Product Description

5 micron filter cartridge 5"/10"/20"/30"/40" PP Melt Blown Filter Cartridge

♦ Part one: Frotec Filter Cartridge Description

1. Brief introduction and Technical Specification

Frotec high performance PP Melt Blown Filter Cartridges are constructed from high-tech and precisely automatic controlled machines. The cartridges are 100% made of FDA grade polypropylene resin which is ideal for most general filtration requirements. The fiber matrix of the filter cartridge has been engineered to provide structural integrity throughout the long service life and stable pressure drop. Excellent character of non-fiber releasing provides optimum fluid purity and eliminates foaming.

*100% polypropylene construction provides excellent chemical compatibility with a variety of process fluids and applications.
*Graded pore construction provides optimum particle retention and prevents media migration, ensuring consistent filtration performance.
Free of binders, additives and lubricants.
*Low pressure drop, high dirt holding capacity and long service life.
*Manufactured by FDA grade polypropylene resin.

Type	Melt-Blown Filter Cartridges
Filter Media	Polypropylene
Nominal Length	10'',20'',30'',40''
Micron Rating	1, 5, 10, 25, 50, 75, 100 μm
End Cap	DOE, 2-222 Flat, 2-222 Fin, 2-226 Flat, 2-226 Fin
Operating Conditions	3.0 bar at 21℃, 2.0 bar at 40℃, 1.0 bar at 60℃
Applications	Plating Solutions, Pre RO/DI, Chemicals, Petrochemical Process, Food & Beverage, Electronics

Material of construction	Filter media	Polypropylene
	Support layers	Polypropylene
	Micron rating	0.1,0.2,0.45,0.65,1.0,2.0,3.0,5.0,10,30,50,70,100 um
	Inner core	Polypropylene
	outer cage, end cape	Polypropylene
	Seal method	Thermal bonded, no adhesives
	O-ring/Gaskets	EPDM, slicone, buna, viton
Cartridge dimensions	Outer diameter	69mm
	Inner diameter	28 mm
	Length (based on DOE end Cap)	10''-254mm,20''-508mm 30''-762mm,40''-1016mm
	Filtration Area	0.65m2 per 10 ''
Operating conditions	Normal operating temperature	Up to 65 ℃
	Max.operating temperature	90 ℃ at p ≤1.0 bar
	Forward flow direction	4.2 bar at 25 ℃
	Reverse flow direction	2.1 bar at 25 ℃
	Ph value compatibility	1-14
	Sterilization temperature time	Steam sterilization for 30 minutes at 121 ℃,100 cycle, autoclave 30 minutes
Cartridge safety	Endotoxin	<0.25 EU/ml
Cartridge safety	Extractables	0.03g/10''

Specification of pp spun washable water filter

Material of Construction

• Filter Media: Polypropylene

• Core: Polypropylene or not

• Seal Material:Silicone,EDPM,Buna,Viton,

• Micron Rating: 1µm, 3µm, 5µm, .. 100µm

Dimensions Industrial PP melt blown filter cartridge:

• Outside diameter: 2.5” (62-65mm),4.5"(110-115mm)

• Inside diameter:28mm or 30’’

• Length: 5", 10", 20", 30", 40"

Recommended Operating Conditions

Max. Operating Temperature: 80°C

Max. Differential Pressure: 2.0 bar @ 21°C

Ordering guide of PP melt blown filter cartridge:

Model PPF

Support

Cor

Dimension

Micron

Rating

End Adaptor

Seal

Length

Inch

PPF-A

Standard

PPF-B

Thin groove

PPF-C

Broad groove

P- PP

N- None

A- ID28mm

OD2.5"

B-ID28mm

OD4.5"

C- ID30mm

OD2.5"

D-customize

1:1μm

3:3μm

5:5μm

10:10μm

........

100:100

μm

0-DOE

1 - 226/Fin

2 - 222/Fin

3- 222/Flat closed

E-EPDM

N-Buna

S-Silicone

V-Vito

5: 5"

10: 10"

20: 20"

30: 30"

40: 40"

50:50”

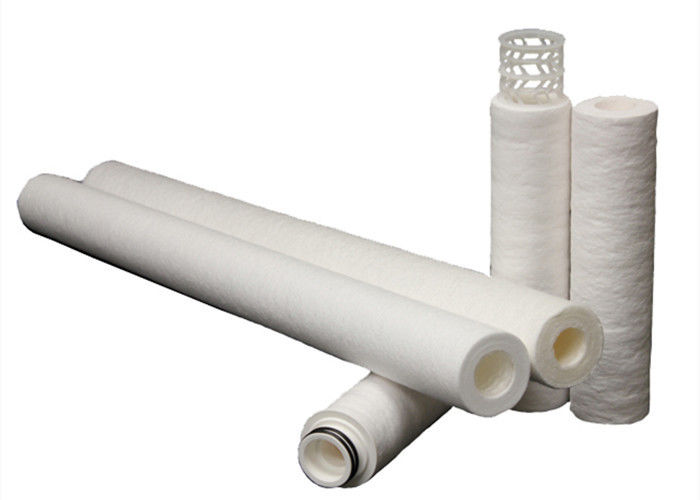

5" 10" 20" 30" 40" PP Melt Blown Filter Cartridge For Food / Beverage 0

Tag:

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month

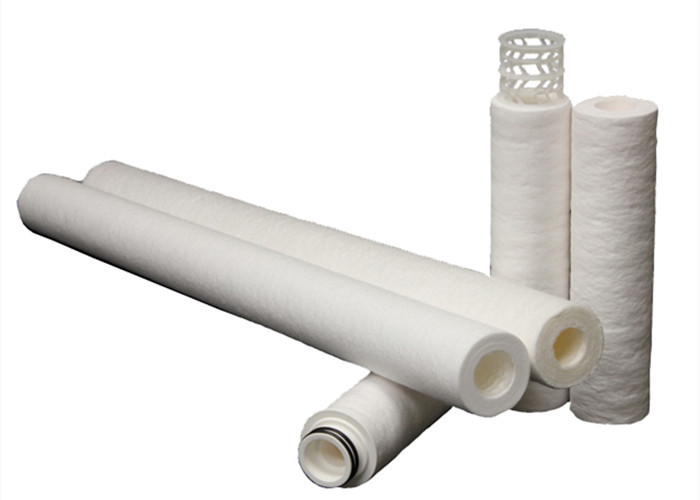

5" 10" 20" 30" 40" PP Melt Blown Filter Cartridge For Food / Beverage
