Detail Information

Name:	Melt Blown Filter Cartridge	MATERIAL::	PP/COTTON/GLASS FIBER
DIMENSION::	ID28,OD62-115	TEMPERATURE::	80
END ADAPTOR::	DODE226/FIN AND ETC	MICRON RATING::	1UM/5UM/10UM...
Highlight:	pp spun filter cartridge , depth filter cartridges

Product Description

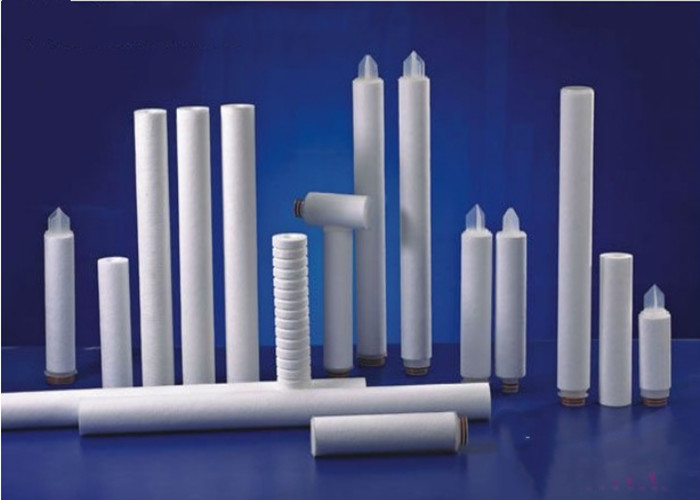

Nominal Rated PP Melt Blown / Spun Cartridge Filters

Features & Benefits

• Surface pore structure spreads water flow to reduce pressure drop

• Continuously gradient pore structure increases the capacity of dust holding, longer service life and high efficiency

• High strength and pressure resistance

• Micro-denier melt blown filtration fiber, high removal ratings

• 100% PP for compatibility with a wide range of process fluids

• Formed by thermal bond without use of any binders and adhesives

High performance pure polypropylene depth dual-gradient density filter media is under highly controlled manufacturing process which guarantees consistently reproducible filter performance. PM-series filters are comprised of an inner compact rated section for exceptional dirt-holding capability and the outstanding performance which meets the highest quality requirements are selected for critical filtration application.

PM-Series

PM-Series cartridge is able to retain contaminants throughout the entire cross section of the filter. The density increases progressively from the exterior surface to the interior and "graded density" allows larger particles to be trapped near the surface while smaller particles penetrate the larger open areas to be trapped nearer the center of the filter in the smaller

Specification

Applications

• Drinking water treatment

• Pre-filtration for RO+DI

• Food and beverage

• Plating, Chemicals and Solvents

Specifications

• Material : 100% PP microfiber

• Micron rating: 1, 3, 5, 10, ... 100um

• OD. 62-65mm/110-115mm; ID. 28mm

• Length: 5", 10", 20", 30", 40", 50", 60"

Operating Conditions

• Maximum differential pressure: 4.1bar at 20℃; 2.1bar at 60℃; 1.1bar at 80℃

• Recommended change out: 2.0bar

• Maximum temperature: 80℃

Ordering Guide

Model PM	Media Type	Support Core	Dimension	Micron Rating	End Adaptor	Seal	Length Inch
PM-1 Standard PM-2 Thin Groove PM-3 Broad Groove PM-4 Cavity Surface	P-High Performance A-Absolute Rate	P-pp N-none	S-ID28mm OD62-65mm B-ID28mm OD110-115mm L-ID96/114mm OD150mm	01:1μm 03:3μm 05:5μm 10:10μm ...... ......	Code 0-DOE w/o adaptor Code 7 - 226/Fin Code 8 - 222/Fin Code 3 - 222/Flat closed Code S - Spring Cap	E-EPDM N-Buna S-Silicone V-Viton	5:5" 10:10" 20:20" 30:30" 40:40" 50:50" 60:60"

Depth Filter Cartridges , PP Spun Filter Cartridge For Water Purifier 0

Tag:

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month
