| Place of Origin: | China |
|---|---|
| Brand Name: | SFFILTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs per month |
| Name: | Multi-Bag Filter Housings With 304 SS 2" Flange IN/ OUT High Pressure | Dimension(L*W*H): | By Specific Machine |
|---|---|---|---|
| Filter Length: | 10 20 30 40 Inch | Operating Temperature: | 90°C |
| Filter OD: | 69mm | Filtering Accuracy: | 0.1um 0.22um 0.45um |
| High Light: | high pressure water filter housing,hydraulic oil filter housing |
||

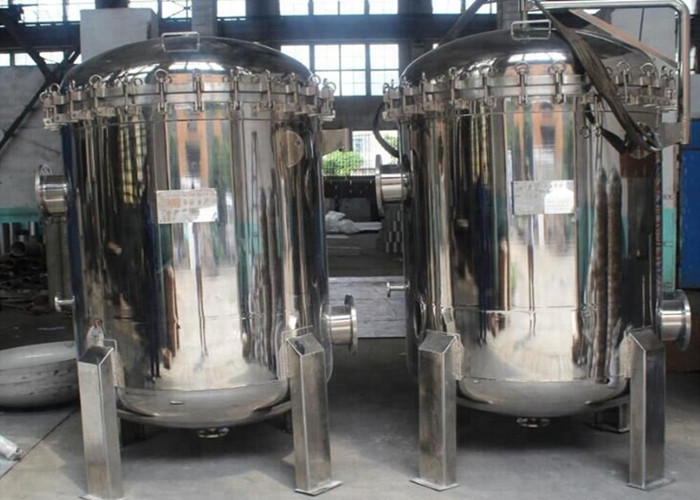

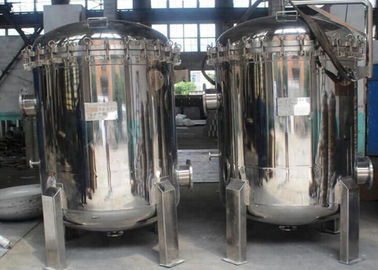

Multi Bag Filter Housings With 304 SS 2" Flange IN/ OUT High Pressure
Brief introduction
Bag filter is a kind of multipurpose filtration equipment that is of novel- structure, small volume, convenient operation, energy saving, high efficiency and strong adaptability and it works in a closed environment.
Clamp bag filter specifications parameter:
| specifications | Bag type | Bag specifications |
filter area |
Pipe Diameter |
maximum flow rate
|
| Φ167x410 | 4# | Φ102x410 | 0.13 | 25 | 10 |
| Φ167x810 | 3# | Φ102x810 | 0.26 | 25 | 20 |
| Φ219x410 | 1# | Φ180x410 | 0.23 | 40 | 15 |
| Φ219x810 | 2# | Φ180x810 | 0.46 | 40 | 30 |
Flange bag filter specifications parameter:
| specifications | Number of Bags | Bag Specifications | filter area |
maximum flow rate
|
| Φ400x1300 | 2 | Φ180x810 | 1.02 | 60 |
| Φ500x1300 | 3 | Φ180x810 | 1.38 | 90 |
| Φ600x1500 | 4 | Φ180x810 | 1.84 | 120 |
| Φ650x1500 | 5 | Φ180x810 | 2.3 | 150 |
| Φ750x1500 | 7 | Φ180x810 | 2.76 | 200 |
| Φ1000x1800 | 10 | Φ180x810 | 3.76 |
300 |
