SS304/316 High Pressure Filter Housing Automatic Self Cleaning Back Wash Filter Housing

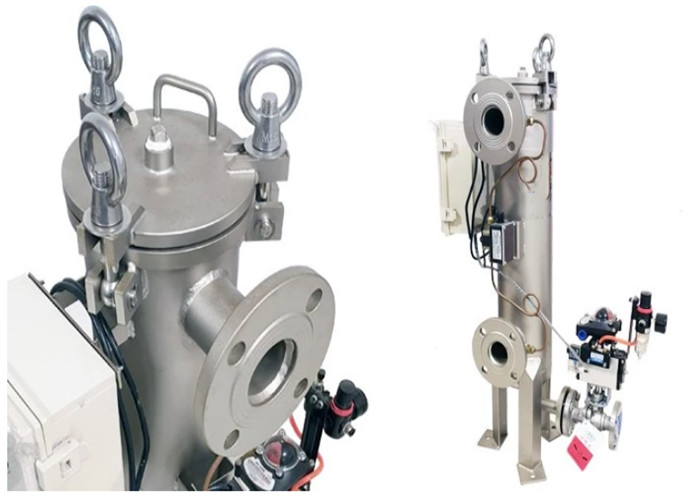

Automatic Self cleaning back wash filter housing in SS304/316

The automatic self cleaning filter Working principle
The automatic self cleaning filter is consisted of filter vessel, stainless steel filter screen, differential pressure switch, time-delay device and pneumatic drain valve. The liquid flows into vessel,filtered by the filter screen and flow out from outlet.So the impurities are intercepted in the filter screen. When the differential pressure reaches the pre-determined value, the filter automatically start the self-cleaning process and the impurities will go out from the drain valve.

Automatic Controlling

First,make the control system to automatic mode.

Second,when the pressure difference switch the reaches index value,the filter will start self-cleaning automatically and discharge.The time of cleaning and discharging are set by the control system.

Finally,when the time reaches to the index value, the filter will stop cleaning and continue the filtration process.

Manual Controlling

First,make the control system to manual mode.

Second, when you press the discharge button, the filter will start self cleaning and discharge.

Finally, loosening the discharge button, the filter will stop cleaning and continue the filtration process.

Product Design Features

1. Suitable for the high flow rate, low-viscosity fluid filtration. The max capacity of a single system is up to 3500m3/h.

2. The filter has the ability of retrieving the instable flow rate and adjusting the time of cleaning without manual operation.

3. Filter screen is easy to be cleaned and it is not consumption part.

4. When the fitler is cleaning the filter screen, the inflow can keep working at the same time.

5. The time of cleaning process is so short that it will save raw material and power.It is very environmental.

6. Compact construct design,small floor area. Easy installation and moving flexiblly.

7. The filter has less wearing parts, no consumption parts and much lower operation and maintenance cost.

8. With extensive application filed,the filter could meet different requirements of various raw water.

9. with larger filtration area and little loss of pressure, more impurities can be filtered.

10. Every parameter can be adjusted according to the actual working condition.
