Detail Information

Name:	Stainless Steel Single Cartridge Gas Filter Housing With O.2 Micron PTFE Cartridge	Surface Finish:	Electro Polished, Ra≤0.2 Um
Body Closure:	Ferrule Clamp, Flange/Flange, Stud /bolts	Max. Temperature:	105 ℃ (design 140 ℃)
Designed Pressure:	9.6 Bar(136psi) Within 30 Mins	Max. Operating Pressure:	6.0 Bar(87psi)
Highlight:	316 stainless steel filter housing , stainless steel cartridge filter housing

Product Description

Stainless Steel single cartridge gas Filter Housing with O.2 micron PTFE cartridge

Product Description

BJQ gas filter housing is made of 304 or 316L stainless steel. The connection between the cylinder cover and cylinder is flange or clamp. The device support part uses the flat foot sheet or landing leg. The overall surface uses mirror surface polishing. According to different requirements, you can select activated carbon, PP/PTFE/GF pleated type filter cartridge to use.

Features

1. Meet the GMP Requirements Electropolished, smooth and hygienic design by avoiding dead space.Easy management of condensate

2. Complete Stainless Steel Structure.Made of 100% 304 or 316L stainless steel of the highest quality

3. Easy To Install Design, Easy to Clean.Available in tri-clamp or flanged connections

Technical data

Designed Pressure	9.6 bar(136psi) within 30mins
Max Operating Pressure	6.0 bar(87psi) within 30mins
Max Temperature	105 ℃ (design 140 ℃)
Surface Finish	Electropolished, Ra≤0.2 um

Specification

Cartridges		Body Closure	Dimensions(mm)
NOS.	Length		d(outlet/inlet)	D	B	H1	H
1	5’’	Ferrule Clamp/Flange	3/4 inch	102	108	120	570
	10’’		1 inch				690
	20’’		1 inch				940
	30’’		1 1/4 inch				1190
3	10’’	Flange/Stud Bolts	2 inch	184	240	180	720
	20’’		2.5 inch				980
5	10’’		3 inch	219	280	200	130
	20’’		4 inch				990

Order information

Product

Material

Cartridge NOS.

Cartridge Type

Length

How to order?

BJQ

304-SUS304

316-SUS316L

01-Single

02-Three

05-Five

AA-DOE

CN-226/FIN

AF-220/FLAT SEAL

BF-222/FLAT SEAL

CF-226/FLAT SEAL

10-10''

20-20''

30-30''

40-40''

Other-xx

Material: SUS304

Cartridge Nos.: single

Cartridge type: 226/FIN

Cartridge length:10’’

Selection code is:BJQ30401CN10

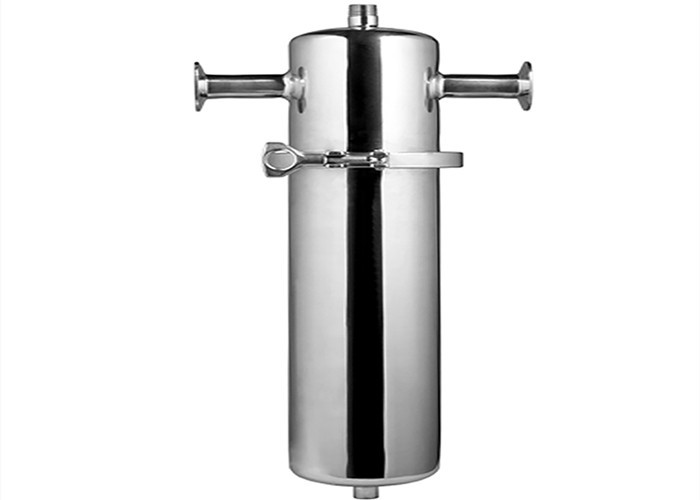

Gas Filter Housing / Single Cartridge Filter Housing With O.2 Micron PTFE Cartridge 0

Tag:

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month
