| Place of Origin: | China |
|---|---|
| Brand Name: | SFFILTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs per month |
| Name: | Cartridge Filter In A Single Industrial Waste Water Treatment Multi Housing | Size Of Cartridge: | 30",40" |
|---|---|---|---|
| Design Pressure: | 150 Psi | O-ring Material: | EPDM, Viton, Silicon |
| Application: | Water Treatment | Operating Pressure: | 100 Psi |
| High Light: | 316 stainless steel filter housing,cartridge filter housing design |
||

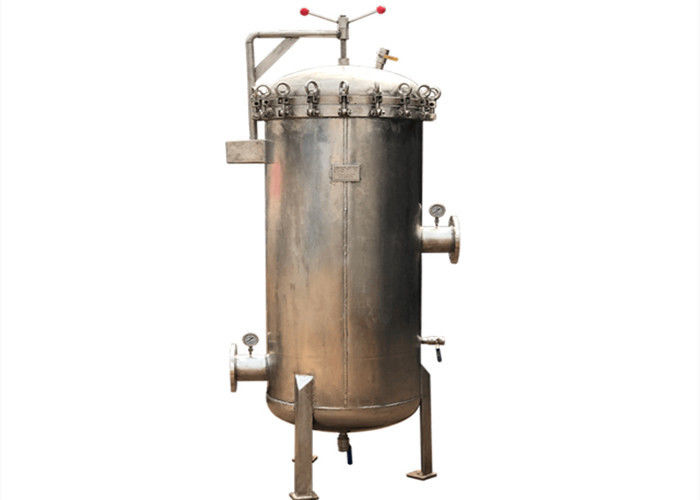

cartridge filter in a single Industrial Waste Water Treatment Multi housing
1.Brief introduction and Technical Specification
SS Filter Housing consists of SUS316L or SUS304, and take filter cartridge as its element. The SS filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology & pharmacy, beer & beverage, chemical, and water treatment etc.
Material: SUS304L, SUS316L
Cartridge Capacity: 1element, 3element... 160element
Connection Available: Flange, female thread
Cartridge Configuration Accepted: 222/Fin, DOE
| Model |
C mm |
D mm |
F mm |
A mm |
H mm |
Drain | Inlet/outlet |
| 30element-30" | 480 | 900 | 1740 | 500 | 660 | 1" | 2"-4" |
| 30element-40" | 480 | 1100 | 1990 | 500 | 660 | 1" | 2"-4" |
| 36element-40" | 500 | 1100 | 2030 | 550 | 710 | 1" | 2 1/2"-4" |
| 40element-40" | 560 | 1200 | 2100 | 600 | 760 | 1" | 2 1/2"-4" |
| 50element-40" | 580 | 1200 | 2130 | 650 | 810 | 1" | 3"-4" |
| 60element-40" | 590 | 1200 | 2150 | 700 | 880 | 1" | 3"-5" |
| 75element-40" | 610 | 1250 | 2200 | 750 | 950 | 1-1/2" | 3"-5" |
| 80element-40" | 620 | 1250 | 2220 | 800 | 1000 | 1-1/2" | 4"-6" |
| 90element-40" | 650 | 1250 | 2390 | 850 | 1000 | 1-1/2" | 4"-6" |
| 100element-40" | 670 | 1350 | 2320 | 900 | 1140 | 1-1/2" | 4"-6" |
| 120element-40" | 750 | 1400 | 2420 | 1000 | 1240 | 1-1/2" | 4"-6" |
| 140element-40" | 830 | 1500 | 2600 | 1100 | 1400 | 2" | 4’’-6’’ |
| 160element-40" | 860 | 1500 | 2650 | 1200 | 1500 | 2" | 6"-10" |
3. Application
• Prefiltration of RO,Pretreatment of sea water desalination
• Bottled water, high Fructose,edible oil,soft drinks
• API, solvents,and water filtration in BioPharm market
• Paints and coatings,Petrochemical,Refineries
• Microelectronics
