| Place of Origin: | China |
|---|---|
| Brand Name: | SFFILTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs per month |
| Name: | Carbon Steel Single Cartridge Filter Housing | Material: | Carbon Steel |
|---|---|---|---|
| Filter Type: | Liquid Filter Housing | Steel Thickness: | 2.0mm |
| Micron Rate: | 20micron~200 Micron | Working Pressure: | 150PSI |
| High Light: | cartridge filter housing design,stainless steel cartridge filter housing |
||

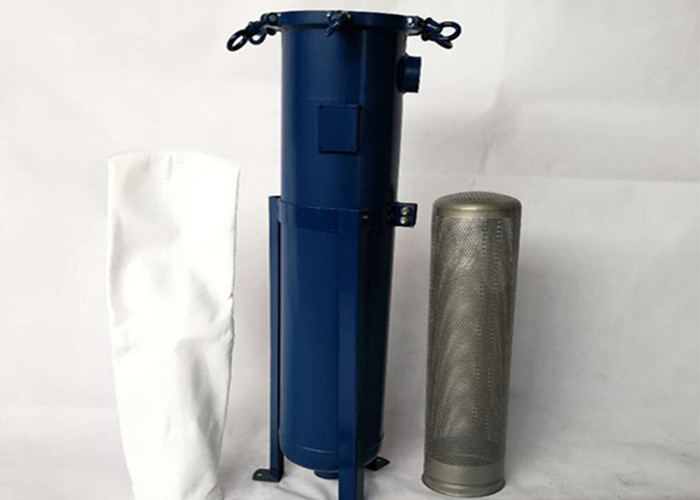

carbon steel single cartridge filter housing
♦ Principle: the pressure filtration
♦ USES: liquid filtration
♦ Style: bag
♦ Performance: the fine filter
♦ Applicable objects: solid-liquid separation
♦ Applicable object properties: high health materials
♦ Filter material type: acupuncture non-woven fabrics
♦ Main material: the long fiber non-woven fabrics
♦ Scope of application: chemical, pharmaceutical, automobile, light industry, food, electroplating and other industries
|
SPECIFICATIONS FOR FLANGE SINGLE BAG FILTER HOUSING
|
|||
|
Micron filter bag
|
Material
|
PP bag
|
100% polypropylene
|
|
Measurement
|
Diameter:
|
Length:
|
|
|
Filter Precision
|
20microns~200microns
|
||
|
Housing Material:
|
carbon steel
|
|
|
|
Flange material
|
carbon steel
|
|
|
|
Blind Plate
|
|
|
|
|
Inlet/outlet port
|
DN50 internal thread
|
|
|
|
Removeable Legs
|
Contain removeable legs
|
|
|
|
Hight
|
Not including legs 110mm
|
|
|
|
Water flow rate
|
30m3/H
|
|
|
|
Stianless steel basket strainers
|
contain
|
|
|
|
Max working pressure
|
150PSI
|
|
|
|
Finish
|
Painting finish
|
|
|
|
Install way
|
Quick install lifting lug lock
|
||
1. compact structure and reasonable size of bag filter.The installation and operation are simple and convenient, occupying a small area.
2.The bag filter with high accuracy, suitable for any fine particles or suspended matter, the filter range from 0.5 to 200 microns.
3.The unit filtration area of the treatment flow is large, small resistance, high filtration efficiency.The filtration function of a liquid filter bag is 5~10 times of the filter element, which can greatly reduce the cost.The design flow can meet the requirements of 1~500m3/h with low cost.
4.Bag filter is widely used, can be used for coarse filter, medium filter or fine filter;Under the condition of the same filtering effect, the equipment such as the fine filter and the filter element filter has the advantages of low investment cost, long service life and low filtering cost.
5.It has the features of high precision, large filtration processing capacity, low cost and high efficiency.
6.The liquid bag filter is free of cleaning and can be replaced within 30 seconds.
