| Place of Origin: | China |
|---|---|
| Brand Name: | SFFILTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs per month |
| Name: | 304 And 316L Stainless Steel Single/muiti Cartridge Lining Fluorine Filter For Water Filtration | Material: | SS304 SS316L |
|---|---|---|---|
| Application: | Water Filter | Pressure: | 1.0Mpa |
| Length: | 10inch, 20inch, 30inch | Temperature: | 120°C |
| High Light: | 316 stainless steel filter housing,stainless steel cartridge filter housing |
||

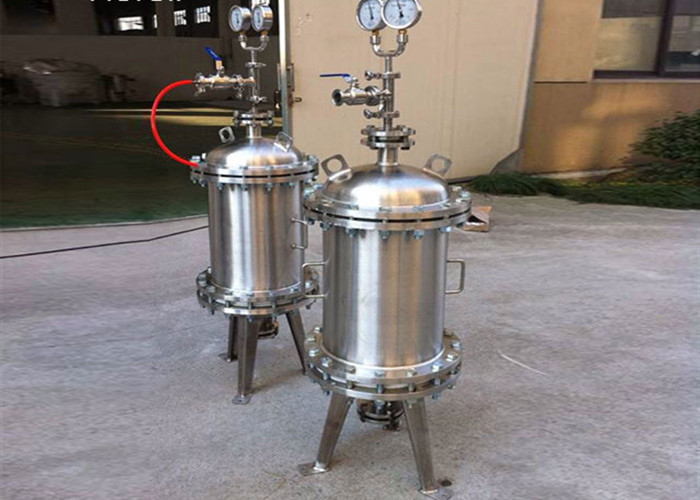

304 and 316L stainless steel single / muiti cartridge lining fluorine filter for water filtration
high quality bag filter housing for industrial water filtration, filter bag freely provided
This product has a top inlet and a bottom outlet, through which the fluid to be filtered flows from top to bottom during the filtration. In this manner, the fluid is not affected by turbulence, and the filtration efficiency and service life of the filter bag can be maximized. When the head cover is closed, it directly compresses the sealing ring of the filter bag, ensuring better sealing performance and easier operation. In addition, the head cover is cast in one piece and tightened with bolts to withstand high pressure. The design meets ASME and CE standards.
|
Product Name
|
stainless steel water filter
|
|
Material
|
SUS304 SUS316L
|
|
Application
|
water filter
|
|
Number of cartridge
|
1‘’ 2‘’ 3‘’ 4‘’ 5‘’
|
|
Application
|
water filter
|
|
Interface
|
222 226
|
|
inlet/Outlet
|
Flanged (DN40, DN50)
|
|
Pressure
|
1.0Mpa
|
|
Length
|
10inch 20inch 30inch
|
|
Temperature
|
120°C
|
