Detail Information

Name:	Water Treatment PP Melt Blown Filter Cartridge	Warranty:	Three Months
Diameter:	65 Mm	Filtration Accuracy:	1 /5 /10 /20 Um Etc
Operating Temperature:	≤80℃	Lenth::	10"/20"/30"/40" Etc
Highlight:	pp sediment filter cartridge , pp spun filter cartridge

Product Description

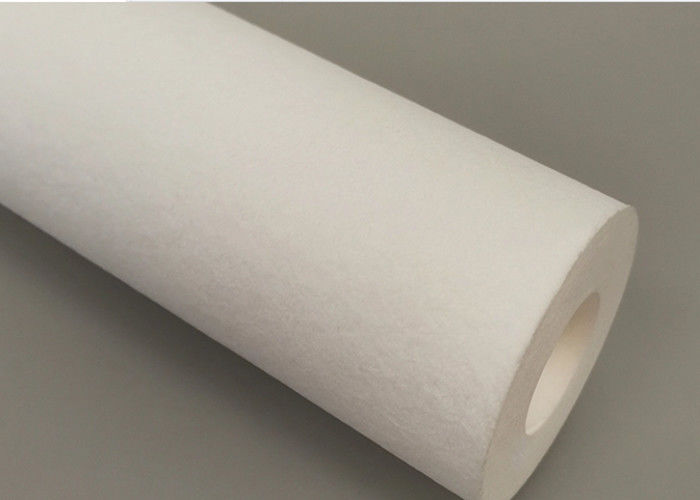

Water Treatment PP Melt Blown Filter Cartridge

Model: RPL

This product is a variety of tubular filter made of non-toxic tasteless polypropylene as the raw material, after melting, injection, traction and shaping.

Product character:

1. Filter element diameter is densification, even and high efficiency on filtration. As the particle will be “bridging” in the pore canal ,it will prevent the particle which owns a smaller diameter than the pore, the filtration effection gets a rate beyound 98%.

2. High cleanliness of itself,non-pollution to the water.

3. Corrosion preventive to the acid, alkali, etc chemical reagent and organic solvent.

4. High strength,it will not deformation when filtration in-out differential pressure is 0.4Mpa.

5. Low cost,can be used repeatedly by washing,so it will lower the cost.

Specification

ID & OD (mm)		Φ 30/65, Φ 28/65 etc.
Length (mm)		250, 500, 700, 1000
Filtration Accuracy (um)		1, 3, 5, 10, 15, 20, 30, 50, 70, 100
Type		Without filter core, With filter core, Outer sheath
Interface		Flat type, 222 type, 226 type
End Cap		Flat type, Fin type
Operating Pressure		≤ 0.5Hpa
Pressure Drop		≤ 0.35Mpa
Operating Temperature		≤ 80ºC

Quality Control

1. All filter components are subjected to a factory in-coming Quality Control checking and testing procedure.
2. Filter media are controlled by the Quality Control Laboratory to ensure all design parameters and test criteria meet specifications and performance results.
3. Throughout production & assembly, on line and laboratory controls & tests are made to ensure every perfect filter.
4. Representative filter from each batch type and production run are subjected to a complete test flow evaluation to determine efficiency, pressure drop and dust holding capacity.
5. To ensure that ex-factory products are maintained in perfect condition and are not damaged during transport to final destination.

Packaging & Shipping

1. Package Requirements: Carton box and pallets.
2. Delivery Time: 7-15 working days after advanced payment.
3. Ways of Transportation: By International express / air / sea / railway.
4. Loading Port: Shanghai Port, Tianjin Port, Qingdao Port or other Chinese ports.

Water Treatment PP Melt Blown Filter Cartridge 65 Mm Diameter CE Approved 0

Tag:

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month
