Detail Information

Name:	Cheap High Rate SS304 Single Bag Filter Housing Factory	Working Pressure::	ATM-5bar
Polishing::	Mirror Polishing	Structure::	Single Bag
Function::	Removing Impurities	Application::	Wine, Juice, Honey, Water, Sauce Etc Liquid Filtration
Highlight:	stainless steel sanitary filter housing , stainless steel water filter housing

Product Description

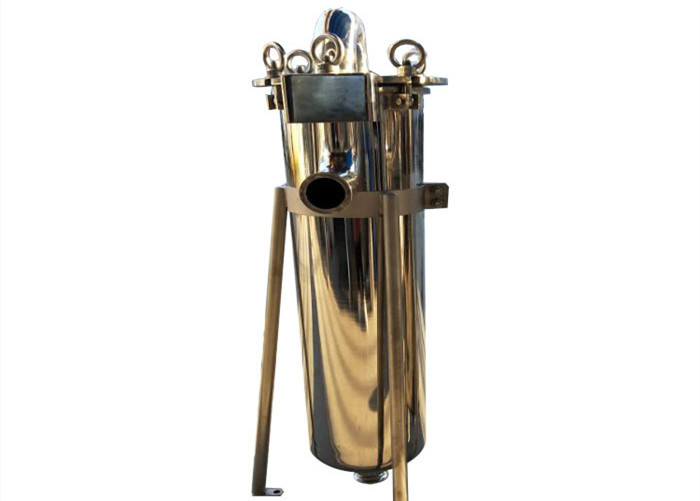

cheap high rate SS304 Single Bag Filter Housing factory

Side inlet and outlet or bottom outlet.Spring pressure ring pressed bag mo-uth, good sealing effective, economical.

Easy assembly and disassembly.

Top inklet and bottom outlet.

Flat cap pressed bag mouth, rational

distribution of the feed, less residual.

Easy assembly and disassembly.

Side inlet and outlet or bottom outlet

(3-20 bags).

Piping structure and rocking arm

styles are optional.

Application industry

1, Food industry	fine filter of space water, mineral water,beverages, liquor clarification and filtration process.
2, Pharmaceutical industry	sterile water, oral, infusion and injection water treatment.
Electronics industry	water preparation semiconductors, instruments, picture tubes and other production plants, wash water filtration bar.
Chemical industry	organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification.
Oil industry	oil field water injection preparation and so on
Environmental protection	electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment.
Other	Seawater, brackish water desalination water treatment, hotels, apartments water treatment.

Basically profile

Material of housing	SS304/SS316
Material of filter cartridge	PP, PES, PVDF, PTFE as required
Body seal	silicone, viton,EPDM,PTFE
Surface finish	RA0.6um mechanical polish
O-rings	Silicone rubber; Fluorine rubber; EPDM rubber; NBR; Outer tetrafluoroethylene rubber
Inlet&outlet type	quich open, clamp, flange, thread as required

High Rate SS 304 Single Bag Filter Housing Mirror Polishing Removing Impurities 0

Tag:

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month

High Rate SS 304 Single Bag Filter Housing Mirror Polishing Removing Impurities

stainless steel sanitary filter housing
