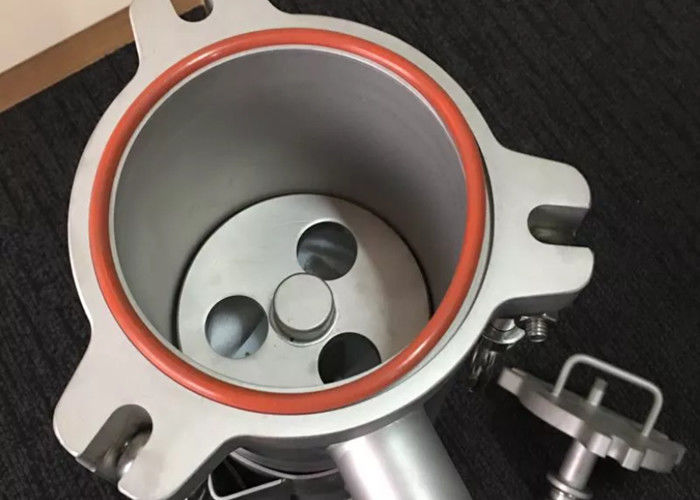

Stainless Steel Sanitary Filter Housing For Oil Water Filtration Treatment

Basic Information

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month

Get Best Price Contact Now

Detail Information

Name:	SS Bag Filter Housing	Inlet/Outlet::	3''-12'' ANSI Flange
Vent::	1'' NPT	Gauge::	1/4'' NPT
Drain::	1.5'' NPT	Optional::	Viton/Teflon/Silicone
Highlight:	stainless steel sanitary filter housing , stainless steel water filter housing

Product Description

Stainless Single Steel Filter Bag Filter Housing for Oil Water Filtration Treatment

Product Features

Available in 304, 316L Materials of Construction for Maximum Chemical and Temperature Compatibility
High Finish Interior Avoids Particle Contamination And Allows For Easy Cleaning
Standard Eye-Bolt Closure Provides Added Durability And Easy Bag Change-Out
Compatible With Size 1 And Size 2 Filter Bags As Well As Our Company’s Range Of High Surface Area Filter Elements
Adjustable Leg Assembly Is Standard For Easy Installation
Optional Electro-Polished Finish

Product Specifications

Materials of Construction:

Head/Shell/Vent Cap/Internal Components: 304 Or 316L Stainless Steel

Shell O-Rings: Standard: EPDM

Optional: Viton, Teflon, Silicone

Dimensions:

Inlet/Outlet: 3"~12"(88.9mm~323.9mm) ANSI Flange

Optional:3”(88.9m M)NPT, ANSI Flange

Vent: 1"(33.4mm)NPT

Drain: 1.5"(48.3mm)NPT

Gauge: 1/4"(13.7mm)NPT

Connection Types: JIS,DIN Flange

Performance Specifications:

Maximum Operating Pressure:

150psig(10.3bar)@200℉(93℃) LiquidFiltration
