Precision Grade Single Bag Filter Housing SS 304/316L Material For Liquid Filtration

Basic Information

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, D/P, T/T, D/P, Western Union, MoneyGram
Supply Ability:	100000pcs per month

Get Best Price Contact Now

Detail Information

Name:	Precision Grade SS 304/316L Single Bag Filter Housing For Liquid Filtration	Warranty::	1 Year
Cartridge Capacity::	1-piece, 2-piece, 3-piece,...	Gauge Port::	Flange/Tri-clamp
Inlet/Outlet::	Flange/Tri-clamp	Clamp::	316L/304 Stainless Steel
Highlight:	stainless steel sanitary filter housing , stainless steel water filter housing

Product Description

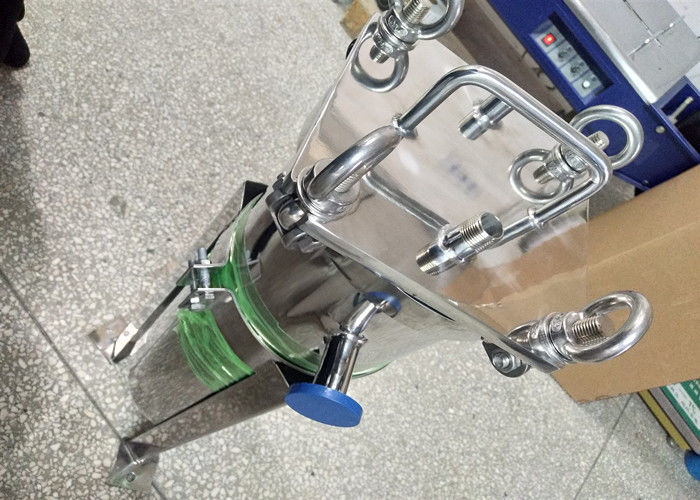

Precision grade SS 304/316L Single Bag filter housing for liquid filtration

All wetted metal surfaces are constructed of stainless steel and are electropolished, providing excellent durability and maximum corrosion resistance.

The housing features low absorption, easy-to-clean vents, drains, and connections, allowing complete sterilization. Vent-insulating rings are for added safety. It all has no shedding and no leakage

and good heat-resistance.

Stainless Steel Single Cartridge Filter Sanitary Housing

Are specifically designed for liquid and air & gas filtration, covering industries of biopharmaceutical, food & beverage, microelectronic, chemical & water treatment.

Typical application for sanitary housing include bioreactors, autoclaves, freeze dryers and process tanks, etc.

Materials of Construction
Housing	316L/304 Stainless Steel
Clamp	316L/304 Stainless Steel
Seal	Silicone/EPDM/VITON
Cartridge Capacity
1-piece, 2-piece, 3-piece, …
Connections
Inlet/Outlet	Flange/Tri-clamp Flange/Tri-clamp
Dome to Base	4” Gaskets
Maximum Operating Conditions	6.0 bar@121 ℃ for housing
Surface Finish
Wetted Surfaces	Sanitary Finish, < 20 Ra
Exterior Surfaces	Sanitary Finish, < 32 Ra
Sterilization
Support in-line steam sterilization, autoclaved at 123℃ for 60 minutes, or hot water sanitized

Precision Grade Single Bag Filter Housing SS 304/316L Material For Liquid Filtration 0
