Detail Information

PRODUCT:	316L Stainless Steel Liquid Filter Housing For Wine Filtration	Inlet/Outlet:	1.5" Sanitary Flange
Surface Finish:	Interior/Exterior	Filter Media:	SS316L,SS304
Size:	5",10",20",30",40"	O-Ring:	Silicone, Viton, EPDM, Etc
Highlight:	stainless steel filter housing , liquid bag filter housings

Product Description

Features and Benefits of cartridge water filter housing

Mirror Surface Finish Complete Stainless Steel Construction

Reduces bacterial/particle adhesion and no dead space

Excellent corrosion resistance

Easy To Install Design With Sanitary Connections, Easy to Clean

Available in tri-clamp, flanged and thread connections

Requires minimum floor space and quickly dismantles for easy cleaning

Housings Accommodate From One (1) to Many 10", 20", 30" or 40" Cartridges

Suitable for small to large batch sizes and flow rates

High pressure & high temperature designs are available

Clean-in-Place (CIP) /Steam-in-Place (SIP) Design

Typical Applications of cartridge water filter housing

Technical Specification

Material:	Housing	Stainless Steel 304 and 316L for Choice
	O-Ring	Silicone, Viton, EPDM, etc
Surface Finish:	Interior/Exterior	Electro polished, Ra≤0.2um
Connections:	Inlet/Outlet	Tri Clamp	1” to 10” Or as your request
		Flange
		Thread
	Vent	¼" female
	Drain	1" male or as your request
Lid/Cover Type:	Swing Bolts or Tri Clamp(only for single round)
Designed Pressure:	10bar (145 psi) with in 30mins
Operating Pressure:	Max. 7.2 bar(108 psi)
Temperature:	Max. 95 ℃ (sterilization 150 ℃)
Cartridge Adapter:	220, 222, 226, etc
Cartridge Capacity:	1, 3, 5, 8..... 30, 36, 45 round

Specifications

316L Stainless Steel Liquid Filter Housings 1.5" Sanitary Flange For Wine Filtration 0

Tag:

Place of Origin:	CHINA
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 SET
Packaging Details:	WOODEN CARTON
Delivery Time:	15-30 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 SET PER MONTH

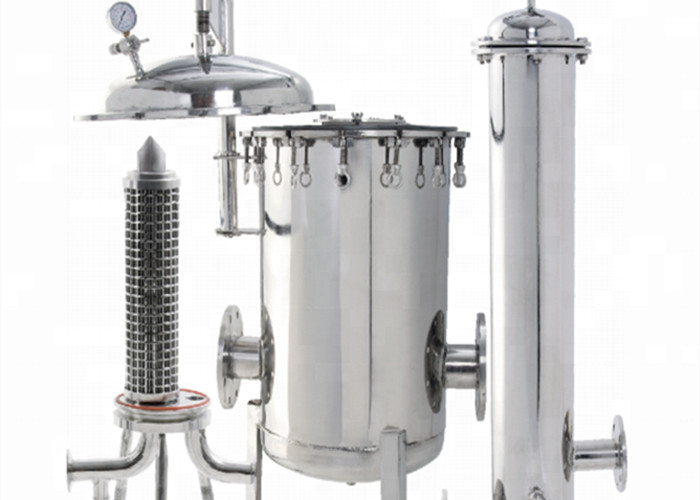

316L Stainless Steel Liquid Filter Housings 1.5" Sanitary Flange For Wine Filtration

stainless steel filter housing
