Quick Opening Ss Filter Housing Novel Structure For Chemical Industry

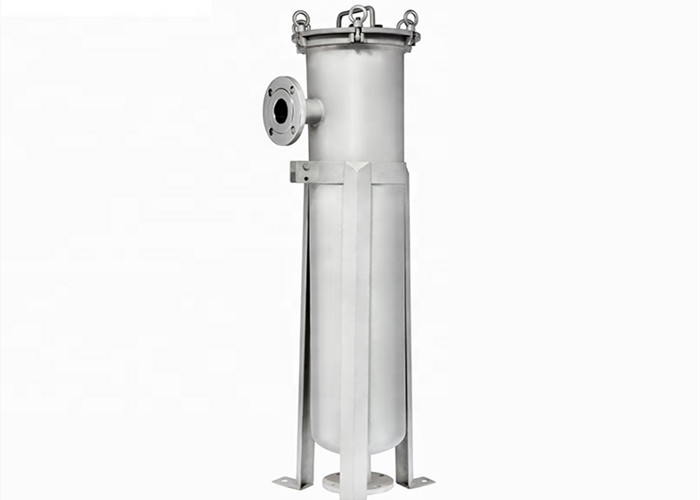

SFFILTECH Quick opening ss bag filter housing for chemical industry

Product Description

Bag filter is a kind of multi-purpose filter equipment with novel structure, small volume, simple and flexible operation, energy saving, high efficiency, airtight operation and strong practicability. The inner part of the filter is supported by a metal mesh basket. The liquid flows in through the inlet, and flows out from the outlet after the filter bag is filtered. The impurities are intercepted in the filter bag. The filter bag can be replaced or cleaned and used again.
Bag filter can be divided into two types according to the number of bags: single-bag filter and multi-bag filter.

Working Principle of Bag filter Housing

Bag filter is a kind of pressure filter device,its main structure is divided into three parts:filter vessel,support basket with netting on top and filter bag,the filter bag is supported by metal net. Water flowed from the inlet, passed the filter bag and lowed out from outlet, the contamination particle is held up in the filter bag. It can be used continuously after changed a new filter bag.

Features.

1) Designed for Bag Filtration System

Consists of stainless steel housing, bag holder and filter bags
Wide range of bag sizes for choice

2) Complete Stainless Steel Structure
Quality stainless steel 304 or 316L material
High pressure & high temperature design are available

3) Meet the GMP Requirements
Smooth and round corner design, no dead space
Surface is mechanical/electro polished or sand blasting passivation

4) Clean-in-Place (CIP) /Steam-in-Place (SIP) Design

Application

1) Liquid pre-filtration, particularly suitable for large volume or high viscosity liquids

2. Biopharmaceutical,petrochemical,chemical industry,etc.

3. Electronics, microelectronics, semiconductor industries using high pure water filtration;

4. Oil field water injection, boiler water, chemical reagent, organic products, high purity chemicals, thick liquid medicine filter;

5. Drinking water,mineral water,fruit juice,tea beverages,health drinks filtration

6. Liquor, wine, beer, yellow wine and other wine filtration, pure draft beer aseptic filtration (replacement pasteurization);

7. As the security filter in the water pre-treatment systerm,to process the production/living sewage

8. Others such as biological engineering, oil refining, printing and dyeing, textile industry's water supply and wastewater treatment, scientific research experiments filtering, etc.
