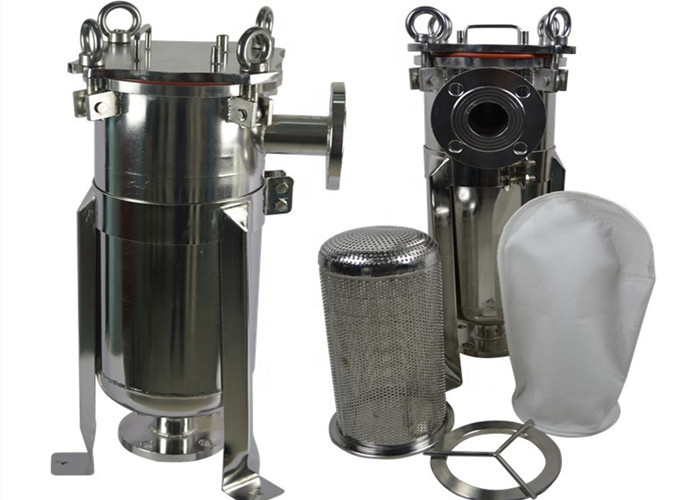

SS 316 304 Stainless steel Bag Filter Tank housing for food and beverage
Mini Stainless Steel 5" bag filter housing with pneumatic wall mounted or trolley
Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.
Stainless steel bag filter housing Feature:
1. material: SS304, SS316L
2. stainless steel multi bag housing, the bag quantity can be customized from 1 to 18.
3. inlet and outlet port is flange connection.
4. Polished or sandblast external surface.
Stainless steel bag filter housing Application:
It's widely used in painting and dyeing, textile industry, beer, vegetable oil, pharmaceutical, Chinese herbal medicine, cosmetics, chemicals, petroleum products, chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, coatings and paints, sugar, molasses, resins, inks, industrial waste water, fruit juice, edible oil, waxes and other industries precision filtration, and more.
How Does It Work?
| Liquid enters the filter bag from the inlet, |
| particles larger than the filtration pore are |
| blocked on the surface or inside the filter bag. |
| Liquid pass across and goes to outlet. When the |
| particles accumulated and increase the pressure |
| drop to 0.05-0.1MPa, replace the clogged bag |
| and continue filtering. |
Technical Parameters & Specifications
| Model No. |
Series |
| Optional filter bags |
PP/PE/NO |
| Single filter rate |
1-1,000m3/h |
| Design pressure |
0.6-1.0MPa(Higher pressure can be customized.) |
| Single filtering area |
0.1-24m2 |
| Filter accuracy |
0.5-1,250μm |
| Number of stand-alone filter bag |
1-24 |
| Applicable viscosity |
1-20,000cp |
| Housing material |
304/316L/CS |
