Detail Information

Material:	SS316L, SS304	Length:	5, 10, 20, 30, 40 Inch
Operating Pressure:	6 Bar	Surface Finish:	Mirror Polish
Inlet & Outlet:	Tri Clamp, Flange, DIN, Etc	Cartridge Adapter:	Code 7, 226, 222, DOE, Etc
Highlight:	stainless steel filter housing , metal filter housing

Product Description

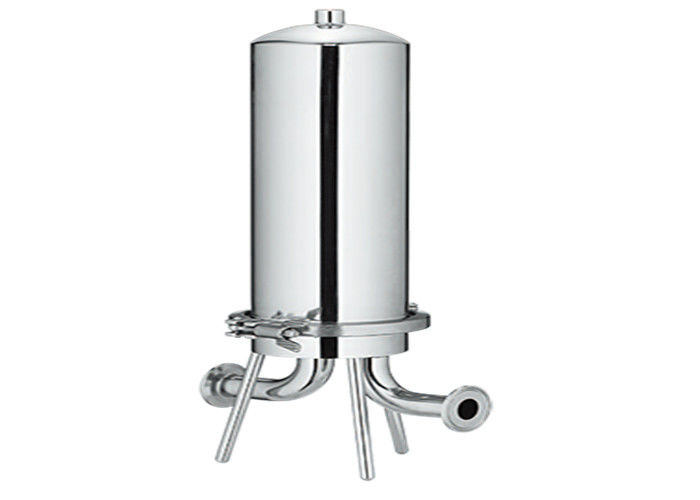

SS304 Housing PP Cartridge Water Filter For Liquid Filter Housing

These filter housings are sanitary designed according to the GMP requirements, manufactured from 304 or 316L stainless steel of the highest quality, available in 1,3,5,7, 8.....45 round configurations and in 10 inch, 20 inch, 30 inch and 40 inch length cartridge.

Stainless steel cartridge filter housings are suitable for a variety of liquid filtration applications(high purity beverage, chemicals and pharmaceuticals, water treatment, alcohol beverage industry, etc).

Features and Benefits

1. Mirror Surface Finish Complete Stainless Steel Construction;

2. Easy To Install Design With Sanitary Connections, Easy to Clean;

3. Housings Accommodate From One (1) to Many 10", 20", 30" or 40" Cartridges;

4. Clean-in-Place (CIP) /Steam-in-Place (SIP) Design;

Specifications

Material:	Housing	Stainless Steel 304 and 316L for Choice
	O-Ring	Silicone, Viton, EPDM, etc
Surface Finish:	Interior/Exterior	Electro polished, Ra≤0.2um
Connections:	Inlet/Outlet	Tri Clamp	1” to 10” Or as your request
		Flange
		Thread
		DIN 11851
	Vent	¼" female
	Drain	1" male or as your request
Lid/Cover Type:	Swing Bolts or Tri Clamp(only for single round)
Length:	5, 10, 20, 30 40 inch
Operating Pressure:	Max. 6 bar(87 psi)
Temperature:	Max. 95 ℃ (sterilization 150 ℃)
Cartridge Adapter:	220(DOE), 222, 226, etc
Cartridge Capacity:	1, 3, 5, 7, 8, 9, 10, 12, 15, 20, 24, 30, 36, 45, etc

Applications

Water Treatment, RO system;

·Pharmaceuticals, API, Biologics;

·Food and Beverage, Wine, Beer, Mineral Water, Distillation Equipment;

·Paints, Inks Plating Solutions;

·Process Chemicals and Electronics Industry ;

Mirror Polish Liquid Filter Housings , SS Cartridge Filter Housing For Water Filter 0

Tag:

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month
