| Place of Origin: | China |
|---|---|
| Brand Name: | SFFILTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs per month |
| Name: | Ss304/316 Stainless Steel Bag Liquid Bag Filter Housing For Liquid | Application: | Water Treatment |
|---|---|---|---|
| Material: | SS304, 316, 316L | QTY Of Cartridge: | 1,2,3,4, 5,6,8,9,10,12,16,18 |
| Design Pressure: | 220 Psi | Surface Finish: | ACID-washing, Electrolyze, Polishing |
| High Light: | liquid bag filter housings,metal filter housing |
||
ss304/316 Stainless steel bag filter housing ,high quality stainless steel liquid bag filter housing for liquid
♦ Part one: Frotec Filter Housing Description
1.Brief introduction and Technical Specification
This item mainly composed of filter bag , shell, support rack and fixture and measuring device. The fluid flows from the filter entrance into filter cartridge with miscellaneous quality piece retained on the surface or deep in ,while purified fluid runs off from the outlet. Filter adopt clamps, ordinary flange, fast shackle bolt to lock ears. with female or sanitary clamp connect with the top cap, which usually install the gauge or platoon air valve, the inlet /outlet are connected with flange, silk thread and sanitary clamp.

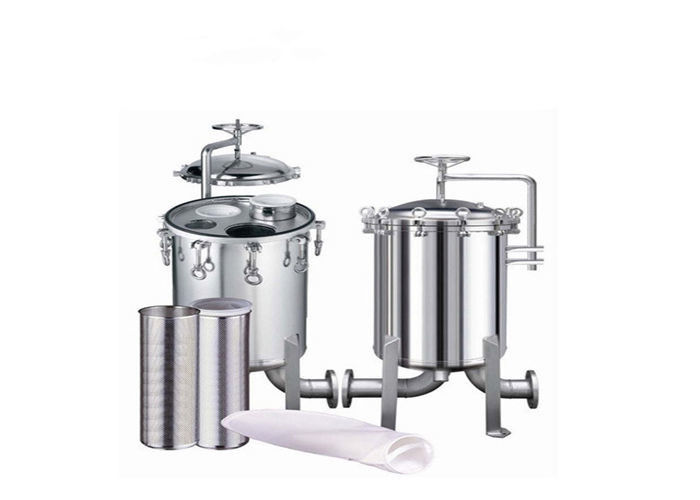

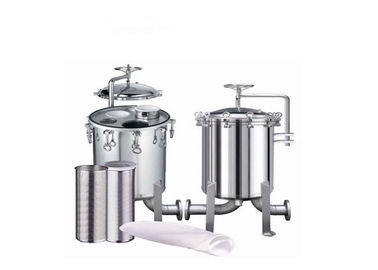

2. Product Show
| No. | Name | No. | Name |
| 1 | Clamp | 8 | Port outlet |
| 2 | Vent | 9 | Filter bag plate |
| 3 | Top cover | 10 | Bolt |
| 4 | Basket | 11 | Shell |
| 5 | O-ring | 12 | Bottom cover |
| 6 | Shell flange | 13 | Support leg |
| 7 | Port inlet |

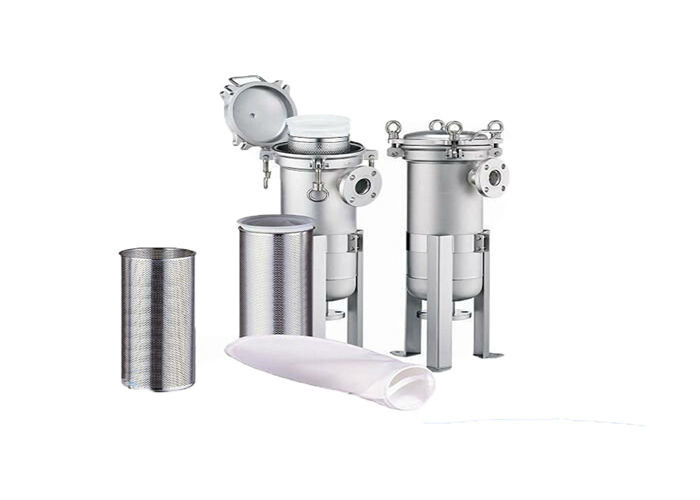

SBS-1 Series - Single Bag Style (Union Closure)
Material: SUS304L, SUS316L
Max working pressure:100PSI
Making method: Polished or sandblast
| Model |
B mm |
G mm |
B+C mm |
A mm |
Inlet/outlet |
| SBS-A | 500 | 380 | 700 | 200 | 1"-3" |
| SBS-B | 700 | 720 | 1050 | 200 | 1"-3" |
| SBS-C | 350 | 190 | 400 | 114 | 3/4"-2" |
| SBS-D | 500 | 340 | 540 | 114 | 3/4"-2" |
3. Application
• Prefiltration of RO,Pretreatment of sea water desalination
• Bottled water, high Fructose,edible oil,soft drinks
• API, solvents,and water filtration in BioPharm market
• Paints and coatings,Petrochemical,Refineries
• Microelectronics
