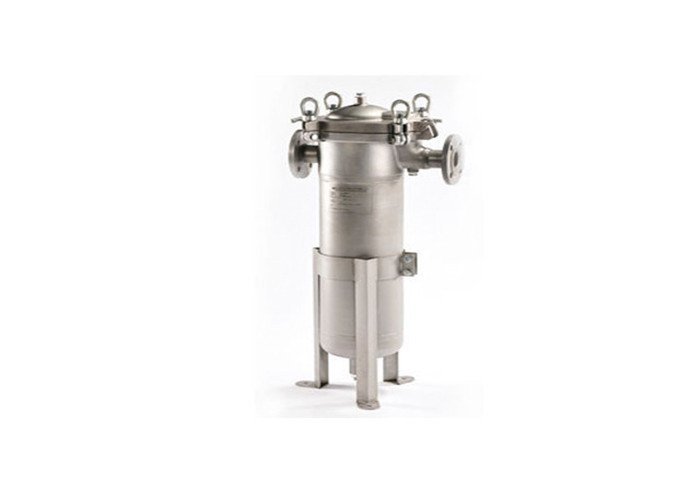

Glass Bead Blast Flange Bag Liquid Filter Housings For Water Treatment

Basic Information

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month

Get Best Price Contact Now

Detail Information

Name:	Best Sale Glass Bead Blast Flange Bag Liquid Filter Housing For Water Treatment	Bags Size:	#1, #2, #3, #4, #5
Function:	Liquid Filter	Working Pressure:	0.1-1.0 Mpa
Power:	220v Or 380v	Diameter Of Flange:	DN25 DN38 DN50 DN80 DN100
Highlight:	stainless steel filter housing , liquid bag filter housings

Product Description

best sale glass bead blast flange bag liquid filter housing for water treatment

Filter Housing Model Name	1Pocket #1	1Pocket #2	1Pocket #3	1Pocket #4
Filter Bag Type(mm)	180*450	180*810	105*230	105*380
Filter Area(㎡)	0.25	0.5	0.09	0.16
Max Flow Rate(m³/h)	20	40	6	12
Designed Pressure(Mpa)	1.0	1.0	1.0	1.0
Material	glass bead blast
Connection Vessel	flange
Inlet/Out Dimension	DN25 DN38 DN50 DN80 DN100
Surface Finish	glass bead blast
Sealing Ring	Silicone, Fluororubber, PTFE, Bunan rubber, Teflon
Operate Temperature	80℃

Glass Bead Blast Flange Bag Liquid Filter Housings For Water Treatment 0

Applications of filter housing :

1.Paints & lacquer industry
2.Wastewater treatment
3.Pharmaceutical industry
4.Food industry
5.Chemical industry
6.Beer, wine & spirit industry
7.Adhesive.
