Detail Information

Name:	Best Sale Prefect Quality Topline Single Liquid Filter Bag Housi	Structure::	Filter Housing, Support Tube, Filter Bag
O-ring::	Silicone	Flow Rate::	40GPM
Max Pressure::	100PSI	Finish::	Polished
Highlight:	stainless steel sanitary filter housing , polypropylene bag filter housing

Product Description

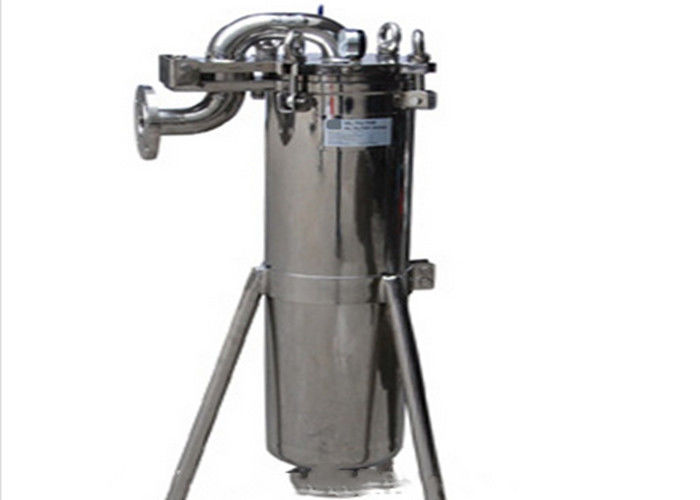

Best Sale Prefect Quality Topline Single Liquid Filter Bag Housing

Single Liquid Filter Bag Housing

Single Liquid Filter Bag Housing is designed for optimum filtration performance which provides filtration solution for a broad variety of fluid applications in the process industry. Single Liquid Filter Bag Housing are particularly useful for filtering large volumes of high viscosity liquids. Bag filter is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement, & choice of end connections. The internal support ensures bags will not burst as high differential pressures build up during operation.

Bag filter is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement, & choice of end connections. The internal support ensures bags will not burst as high differential pressures build up during operation.

Single Liquid Filter Bag Housing:

SINFT Single Liquid Filter Bag Housing effectively removes dirt, pipe scale, and other contaminants from process liquids such as water, beverage, chemical and petroleum products.

Single Liquid Filter Bag Housing can be used with the standard #1, #2, #3, #4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big, achieving more efficient filtering result.

Eye Bolt Closure System.The user friendly, cost effective bag filter housing for high volume, multiple applications and processes.

Name	Filter Housing
Material	Stainless Steel
Design vessel pressure	0.6-1.0Mpa
Operate temperature	-20-130°C
Filter Bag Type	1#Bag, 2#Bag, 3#Bag, 4#Bag
Inlet/Out Dimension	1", 1.5", 2", 2.5", 3", 3.5", 4"
Finish	Mirror Polish, Electrical Polish, Acid Washing, Matt Polish, echanical Polishing, Ra≤0.5μm

Topline Single Liquid Bag Filter Housings Polished Finish With Silicone O Ring 0

Tag:

Place of Origin:	China
Brand Name:	SFFILTECH
Certification:	CE

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	100000pcs per month

Topline Single Liquid Bag Filter Housings Polished Finish With Silicone O Ring

stainless steel sanitary filter housing

polypropylene bag filter housing

Single Liquid Filter Bag Housing

Bag filter is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement, & choice of end connections. The internal support ensures bags will not burst as high differential pressures build up during operation.
